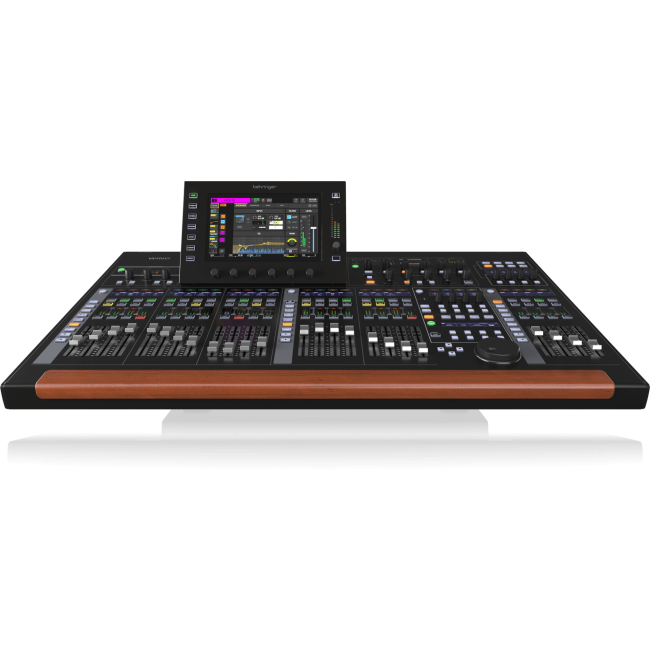

48 Stereo Channels, 28 Bus Full Stereo Digital Mixing Console with 8 Midas PRO Preamps, 8 Midas PRO Outputs, 10.1" Touch Screen and 24 Fader Control Surface
8 Midas PRO mic preamps and outputs provide industry-reference sound quality
24 motorized 100 mm faders in 3 separate, fully configurable sections
3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
10.1 inch main display with multi-touch screen and adjustable swivel
Custom Controls offering 16 configurable buttons, 4 rotary controls and one large control wheel for smooth, personalized workflow
Integrated USB Audio/MIDI Interface for 48 audio channels in and out
Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
16 True-stereo effects processing engines, with 80 world-class algorithms
3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
40 Stereo Input Channels with 5 variable plug-in processing slots each
8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
8 Mute Groups and 8 DCA's for track grouping and consolidation
2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
4 channel GPIO for controlling almost anything with WING
5-Pin MIDI in and out for control and synchronization with external devices
DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
Touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for unique channel identification
