With its retro workflow, evocative sounds, and powerful effects, the JD-800 was a favorite for top electronic music producers through the ’90s and beyond. Combining the original JD

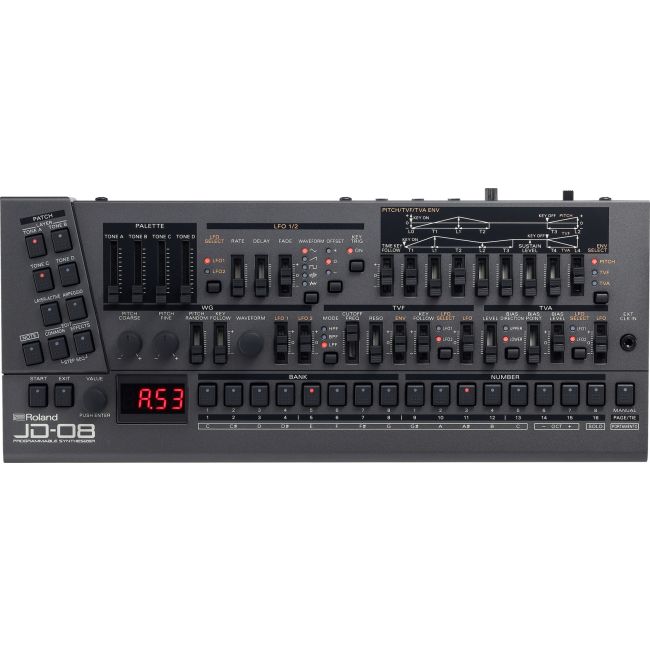

With its retro workflow, evocative sounds, and powerful effects, the JD-800 was a favorite for top electronic music producers through the ’90s and beyond. Combining the original JD-800 waveforms with advanced modeling techniques, the JD-08 delivers the exquisite hands-on sound design of the original, along with hugely expanded polyphony, a two-part polyphonic sequencer, and other modern updates.
Connectors: EXT CLOCK IN jack: Mono miniature phone type PHONES jack: Stereo miniature phone type OUTPUT jack: Stereo miniature phone type MIX IN jack: Stereo miniature phone type MIDI (IN, OUT) connectors USB port: USB Type-C(R) (Audio, MIDI)
Power Supply: Ni-MH battery (AA, HR6) x 4 or Alkaline battery (AA, LR6) x 4 USB bus power
Expected battery life under continuous use: Ni-MH battery: Approx. 6 hours (When using batteries having a capacity of 1,900 mAh.) * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Specifications User Memory: Sound Patch: 256 Pattern: 128
Controllers: Rear Panel POWER switch VOLUME knob PALETTE Section TONE A--TONE D sliders LFO Section LFO SELECT button RATE slider DELAY slider FADE slider WAVEFORM button OFFSET button KEY TRIG button WG Section PITCH COARSE knob PITCH FINE knob PITCH RANDOM slider KEY FOLLOW slider WAVE FORM knob LFO 1 slider LFO 2 slider PITCH/TVF/TVA ENV Section TIME KEY FOLLOW slider T1--T4 sliders L1--L4 sliders SUSTAIN LEVEL slider ENV SELECT button TVF Section MODE button CUTOFF FREQ slider RESO slider ENV slider KEY FOLLOW slider LFO SELECT button LFO slider TVA Section LEVEL slider BIAS DIRECTION button BIAS POINT slider BIAS LEVEL slider LFO SELECT button LFO slider TONE A--TONE D buttons LAYER-ACTIVE button ARPEGGIO button NOTE button COMMON button EFFECTS button START button EXIT button VALUE knob BANK 1--8 buttons NUMBER 1--8 buttons MANUAL button
Step Sequencer: 2 part 64 steps 8 notes per part (Polyphonic)
Expected battery life under continuous use: Ni-MH battery: Approx. 6 hours (When using batteries having a capacity of 1,900 mAh.) * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories: Quick Start Leaflet USING THE UNIT SAFELY Alkaline battery (AA, LR6) x 4
EXT CLOCK IN jack: Mono miniature phone type PHONES jack: Stereo miniature phone type OUTPUT jack: Stereo miniature phone type MIX IN jack: Stereo miniature phone type MIDI (IN, OUT) connectors USB port: USB Type-C(R) (Audio, MIDI)
Dimensions
Width: 300 mm 11-13/16 inches | Depth: 128 mm 5-1/16 inches | Height: 49 mm 1-15/16 inches
