Active DI Box with Extended Dynamic Range. High-headroom design with 48 V phantom power for extended dynamic range , Fully transformer-isolated design ensures electrical separation between PA and stage equipment , Balanced line input on Neutrik* XLR and high impedance input and link output on 1/4” TRS connectors , 30 dB input pad and earth lift switches .

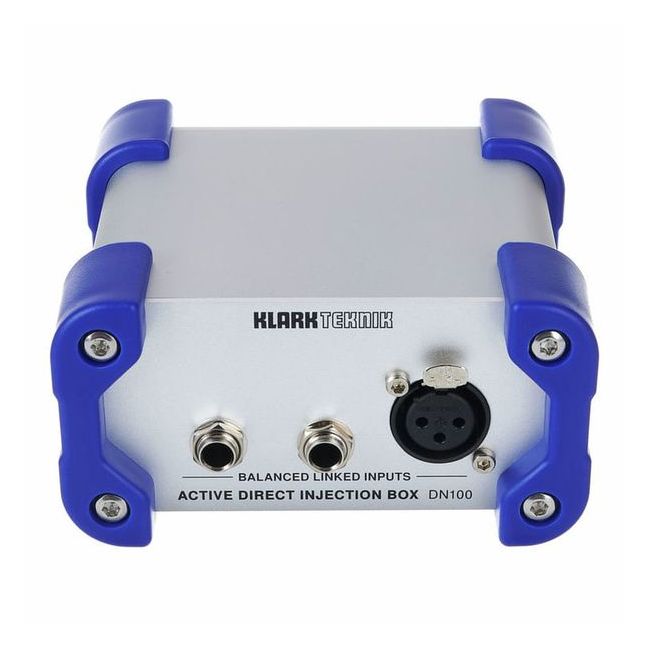

The new Klark Teknik DN100 Direct Injection Box is the natural successor to the long-established LBB100. A ground-up redesign provides an extended dynamic range, lower noise floor and all the world-class audio performance you’d expect from Klark Teknik. DN100 is also designed to handle the rigours of life on the road: a thick aluminium shell protects the electronics, and this in turn is protected by a tough silicone rubber casing, which is replaceable and available as a spare part.
Input: Type active electronic, balanced or unbalanced Impedance 1M Ohm nominal, balanced or unbalanced (jack connectors) 20K Ohm (XLR input only) Connectors 2 quarter inch jacks and 3-pin XLR linked in parallel Maxmum level 30dBu Attenuator 30dB switchable
Brand | Klarkteknik |
---|---|
Outputs | Type Transformer Isolated, balanced Impedance : 300 Ohm Connector : 3 pin XLR Max. Level 10dBu with load : >2k Ohm Min. load : 600 Ohm |
Frequency Response | +0.5/-1dB 20Hz to 20kHz |
Noise | -100dBu, 20Hz to 20kHz unweighted, with input terminated by 10k resistor |
THD+N | <0.01% @ 1kHz, +4dBu |
Consumption | <10mA |
Dimensions | 142 x 106 x 60 mm (LxWxH) |
Weight | 1 kg. |
