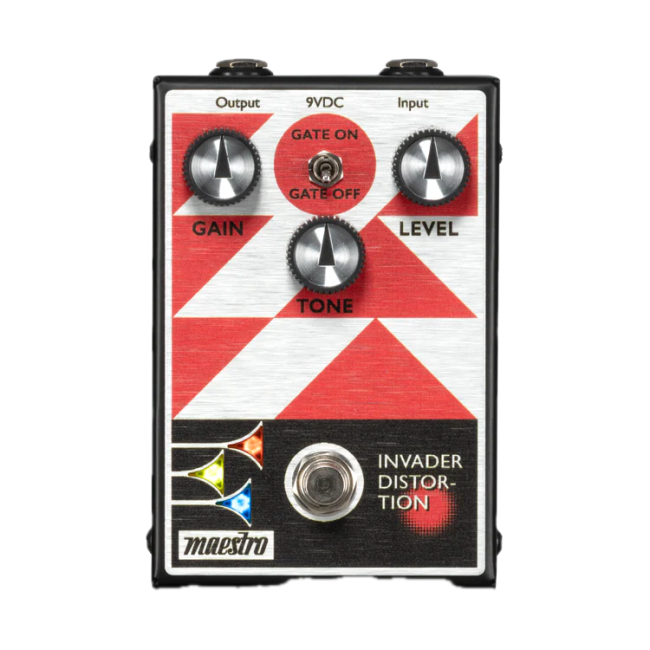

The Maestro Invader Distortion is a high-gain, all-analog modern distortion pedal with a heavy, aggressive, dominant sonic character and loads of rich harmonics. With the Maestro Invader Distortion, users can generate a wide range of distorted sounds. The 3-knob control layout gives users intuitive control over Gain (distortion amount), Tone, and output Level, with more than enough volume on tap to easily exceed unity gain when you want to. Users can also engage a built-in noise gate with the top panel toggle switch. An internal trim pot mounted on the circuit board inside the pedal allows the user to adjust the level of the noise gate's Threshold. The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.
9V battery or regulated 9VDC power supply (5.5 X 2.1 mm plug, wired center-negative)
Dimensions
5.04"in x 3.45"in x 2.5"in (128.0 mm x 87.6 mm x 63.5 mm)
Weight
1.24 lb. (562.5 gm.) Gross: 1.62 lb. (734.8 gm.)
Specification
Controls1:Gain, Tone, Level; internal Noise Gate Threshold trim pot
Current Draw:56.7 mA
Input Impedance:100 kOhms
Led Indicators:Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
Output Impedance:100 Ohms
Power On Switch:Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.
Signal Processing:All-Analog
Switches:True Bypass footswitch, Gate On/Gate Off toggle switch
