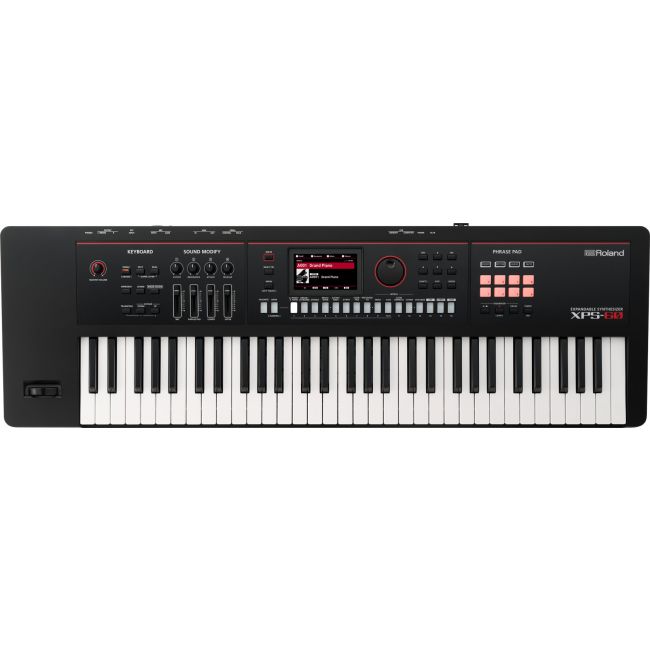

The XPS-60 is the latest evolution of Roland s expandable synthesizer series, combining premium performance features with many user-requested enhancements. You have all the core so
The XPS-60 is the latest evolution of Roland s expandable synthesizer series, combining premium performance features with many user-requested enhancements. You have all the core sounds you need acoustic piano, electric piano, and other essential stage instruments plus new regional music sounds and support for adding even more with World Expansion titles on Roland Cloud. There s also an Audio Player with independent pitch and speed control, per-tone scale tuning, and a mic input with dedicated vocal effects. And with class-compliant USB-C, you can play backing tracks and work with music software via a laptop or mobile device. If you have questions about operating your Roland product, please check our Knowledge Base for answers to the most common questions. You can also contact our Product Support through Roland Backstage . In addition, we have a library of Owner s Manuals and Support Documents that you can download and reference.
Features
Pro performance keyboard with expanded sounds, enhanced features, and support for USB-C mobile battery power
Intuitive panel interface designed for real-time control
Audio player function with pitch and time-stretch support
Improved user scale settings for greater ease of use
Hardware painstakingly designed for portability, robustness, and playability
Quick tone selection and speedy sound creation
Mic input with dedicated reverb, vocoder, and Auto Pitch effects for impressive vocal performances
Eight-track step sequencer for easy phrase creation
Eight phrase pads for controlling sequencer parts and triggering audio samples and rhythm sounds
Class-compliant USB-C audio/MIDI interface for working with music software on computers and mobile devices
Sound Generator Maximum Polyphony: 256 voices * Varies according to the sound generator load
Parts: 8
Tones: 1,600 tone or greater 55 Drum kits or greater
Expansion: EXZ World Expansion Series * The expansion are rewritable internal sound generator memory. You can download data from the Roland Cloud and write it via a USB flash drive into the internal memory. Maximum number of Expansions: 6 * Depends on size of Expansion titles
Sample Import: Audio file: WAV File format: 44.1/48 kHz, 16/24 bits Approximately 24 minutes of samples can be used in total. Up to 3 minutes of stereo per sample (44.1 kHz, 16 bits) * Share with Expansion titles
Preset Scene: 1,600 scenes or greater
User Scene: 256
Scene Remain: Yes
Favorite: 256
Effects: Multi-Effects: 8 systems, 93 types Part EQ: 8 systems Drum Part COMP: 6 systems Insertion Effect: 1 system, 93 types Chorus: 10 types Reverb: 8 types System EQ: 1 system Mic Reverb: 8 types Mic NS/Comp
Audio File Player Section: Audio file: WAV, AIFF File format: 44.1/48 kHz, 8/16/24 bits linear format Speed/Pitch Control: Yes
Other Rhythm pattern: Yes
Arpeggio: Yes
Chord Memory: Yes
Controllers: Pitch Bend/Modulation lever Sound Modified knob x 4 Slider x 4 2 x 4 Pads
Display: Graphic color LCD (480 x 272 dots with backlight)
Connectors: Headphones jack: Stereo 1/4-inch phone type MAIN OUT jacks (L/MONO, R): 1/4-inch TRS phone type Mic Input jack: Combo type (XLR, 1/4-inch TRS phone) External Input jack: Stereo miniature phone type FOOT PEDAL jacks(HOLD, CONTROL) MIDI connectors (IN, OUT) USB MEMORY/EXT DEVICE port: Type-A (Storage, MIDI) USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
External Memory: USB flash drive (sold separately)
Power Supply: AC Adaptor USB bus power supply (USB Type-C(R) port) * External power supply from a USB Type-A port isn't available.
Current draw: 700 mA (AC adaptor) 2,000 mA (USB bus power supply)
Accessories: Startup Guide Leaflet USING THE UNIT SAFELY AC adaptor (PSB-5U) Power cord
