Zoom M4 MicTrak

EGP 13,750.00
The first portable recorder with 32-bit float recording and a built-in timecode generator — designed for filmmakers and musicians who need perfect audio in one take.
Out of stock
SKU
M4 MicTrak

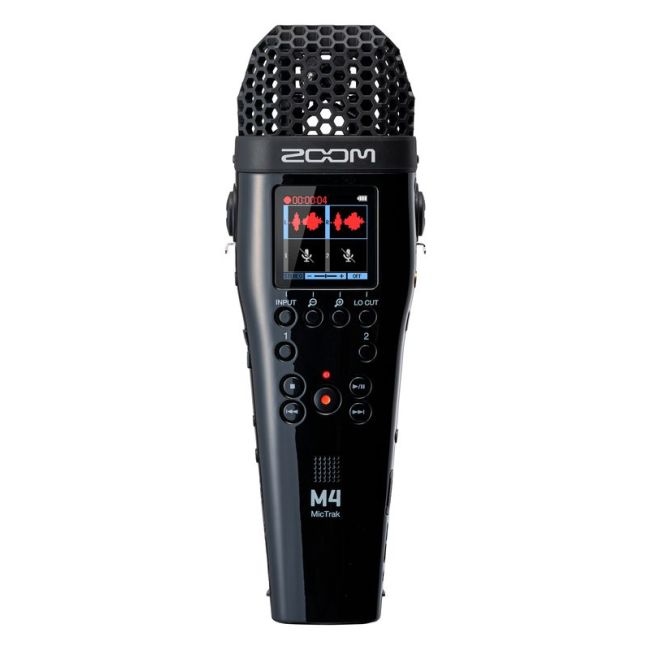

The Zoom M4 MicTrak is the first portable recorder equipped with 32-bit float recording and a built-in timecode generator, giving filmmakers and musicians everything they need to capture outstanding audio in a single take.

With its onboard microphones and timecode sync, the M4 MicTrak is built for field recording, video sound, podcasts and music — delivering clean, clip-free capture without the need to set gain.

More Information
BrandZoom
DisplayLCD 1.54" full color (240 × 240)
Number of Channels2 (BUILT IN XY MIC) + 2(XLR/TRS INPUTS)
Phantom Power+24/+48V 10mA maximum for each channel
Speaker500mW/8Ω mono speaker
RecordRECORDING MEDIA: 4GB–32GB microSDHC cards; 64GB–1TB microSDXC cards. WAV SUPPORTED FORMATS: 44.1/47.952/48/48.048/96/192kHz; 32-bit float; mono/stereo; BWF and iXML. MAXIMUM SIMULTANEOUS RECORDING TRACKS: 4 (2 BUILT IN XY MIC + 2 XLR/TRS INPUTS)
Headphone Connector1/8" stereo mini jack
InputsMIC INPUT — MIC TYPE: Unidirectional; SENSITIVITY: -42 dB, 1 kHz at 1 Pa; INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used); MAX SOUND PRESSURE INPUT: 135 dB SPL. EXT MIC INPUT — CONNECTORS: 1/8" stereo mini jack; INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used); INPUT IMPEDANCE: 2 kΩ or more. XLR/TRS INPUTS — CONNECTORS: XLR (2:HOT)/TRS combo jacks; INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used); INPUT IMPEDANCE: MIC: 3 kΩ or more, LINE: 3 kΩ or more; MAXIMUM INPUT LEVEL: MIC: +4 dBu, LINE: +24 dBu; PHANTOM POWER: +24/+48V 10mA maximum for each channel; EQUIVALENT INPUT NOISE: −127 dBu or less (IHF-A)
OutputsLINE OUT — CONNECTOR: 1/8" stereo mini jack; MAXIMUM OUTPUT LEVEL: +1 dBu. HEADPHONE — CONNECTOR: 1/8" stereo mini jack; MAXIMUM OUTPUT LEVEL: 20 mW +20 mW(32 Ω load). BUILT-IN SPEAKER: 500mW/8Ω mono speaker
ConnectorsTIME CODE IN/OUT: 1/8" stereo mini jack (Tip: IN, Ring: OUT). USB: USB Type-C. REMOTE INPUT: RC2/RC4/RCH-5/RCH-6
SpecificationTIMECODE MODES: Off, Int Free Run, Int Record Run, Int RTC Run, Ext. FRAME RATES: 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D. PRECISION: ±0.2 ppm. SUPPORTED INPUT LEVELS: 0.2 – 5.0 Vpp. INPUT IMPEDANCE: 4.6 kΩ. OUTPUT LEVEL: 3.3 Vpp. OUTPUT IMPEDANCE: 50 Ω or less. USB MASS STORAGE CLASS: USB 2.0 High Speed. AUDIO INTERFACE WITH REC CLASS: USB 2.0 High Speed; SAMPLING RATE: 48kHz; BIT RATE: 24-bit/32-bit float; CHANNELS: 4 in/2 out. INCLUDED: Quick Guide; Windscreen.
Capacity4GB–32GB microSDHC cards; 64GB–1TB microSDXC cards
PowerAlkaline batteries: about 18 hours
Power SupplyBATTERIES: 4 AA. AC ADAPTER: ZOOM AD-17 (DC 5 V/1 A). USB bus power is supported.
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
4-Track 32-bit float recorder Newly designed stereo X/Y microphones provide unmatched frequency response and clarity Body construction, and specialized finish to reduce handling noise 2 XLR/TRS inputs with F-Series preamps Color LCD Screen with waveform display Timecode Generator with 3.5mm in/out Onboard Normalization function 3.5mm headphone output plus 3.5mm stereo line output for camera connection USB Interface compatible with PC, Mac, iOS, and Android (48 kHz at 24 or 32-bit Float**) Use as an audio interface and record to SD card simultaneously Runs on 4 AA batteries* (18 hour battery life) * Batteries not included ** For Android, 32-Bit Float cannot be used with USB Microphone
