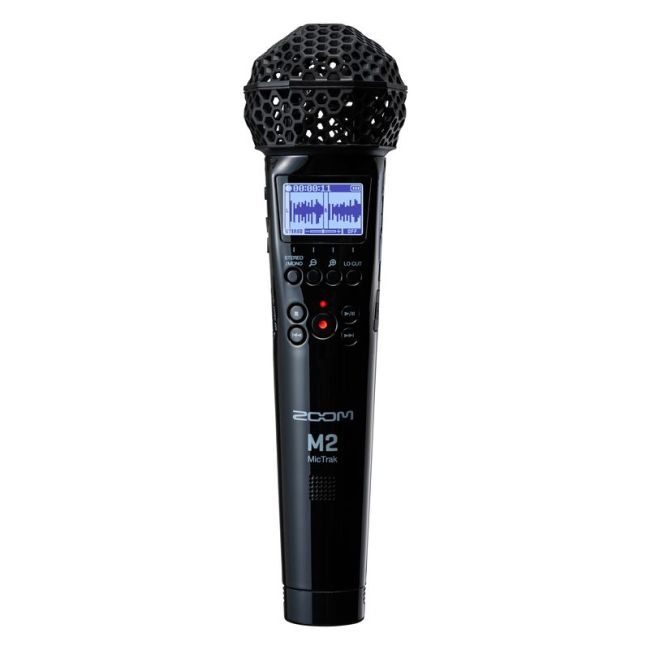

Zoom’s M2 MicTrak elevates the work of creators looking to easily record perfect audio. With its innovative X/Y mic capsule design and 32-bit float technology, the M2 MicTrak always gives you great sound in one take.
Built-in mic
90º XY stereo format
Directionality: Unidirectional
Sensitivity: −42 dB/1 Pa at 1 kHz
Maximum sound pressure input: 135 dB SPL
Outputs
PHONE/LINE OUT jack
Connector: Stereo mini jack
Maximum output level: 20 ｍW + 20 ｍW (into 32Ω load)
Output impedance: 10 Ω or less
Connectors
USB Type-C
• Use a USB cable that supports data transfer.
Specification
USB Mic: USB 2.0 High Speed, 48 kHz, 24-bit or 32-bit float
File transfer: USB 2.0 High Speed
Estimated Continuous Operation Time Using Batteries: Alkaline batteries About 11 hours; NiMH batteries (1900 mAh) About 10.5 hours; Lithium batteries About 22 hours
Stereo recording, 48kHz/32-bit float, no headphones, display backlight off
These values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Note: 0 dBu = 0.775 Vrms
Capacity
4–32GB cards compatible with the microSDHC specification; 64GB–1TB cards compatible with the microSDXC specification
Power Supply
2 AA batteries: Alkaline, Lithium, or Rechargeable NiMH; AC adapter ZOOM AD-17: DC 5 V/1 A; • USB bus power is supported.
Stereo 32-bit float recorder
Newly designed stereo X/Y microphones provide unmatched frequency response and clarity
Body construction and specialized finish to reduce handling noise
LCD screen with waveform display
Easy-to-use front panel controls
Mono mode for ENG application
Onboard Normalization function
3.5mm headphone output
Includes a newly designed mic clip to mount on a mic stand
USB Microphone compatible with PC, Mac, iOS, and Android (48 kHz at 24 or 32-bit Float**)
Use as a USB microphone and record to SD card simultaneously
Runs on 2 AA batteries* (11 hour battery life)
* Batteries not included
** For Android, 32-Bit Float cannot be used with USB Microphone
