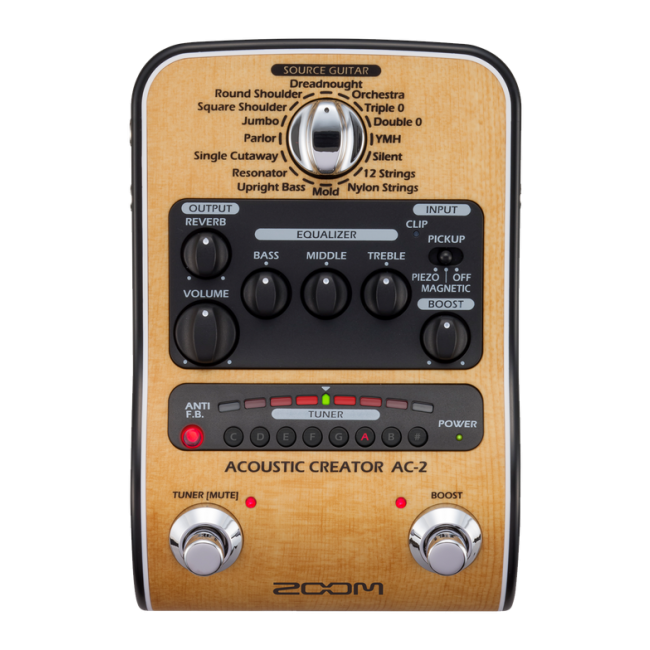

Amplify your acoustic sound with the Zoom AC-2 Acoustic Creator. The AC-2 is a DI (direct box) that encompasses all you need to deliver natural guitar tone on stage or in the studio. The AC-2 automatically restores tone lost through acoustic pickups, so your sound is always lush, resonant, and faithful to the instrument you have in hand.
With 16 source guitar presets, the AC-2 recovers the sonic characteristics of a variety of guitar types and body shapes. You can choose from dreadnought, upright bass, nylon strings, 12 string, and more. Simply select your guitar of choice, then choose piezo or magnetic pickup. From there, the AC-2 is ready to reproduce and amplify your guitar’s tone with complete accuracy.
Input: Standard monaural phone jack
Rated input level: -20 dBu*
Input impedance: 10 MΩ
Outputs
1/Mono/Phones: Standard stereo phone jack (combined line/headphones)
Maximum output level: Line +7 dBu* (10 kΩ or more)
Stereo mini jack (3.5 mm)
Headphones 8 mW + 8 mW (into 32 Ω load)
2: Standard mono phone jack
Maximum output level: Line +7 dBu (10 kΩ or more output impedance)
Balanced Output: XLR jack
Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD)
PRE/POST (switchable)
GND LIFT (switchable)
Frequency Response
20 – 20 kHz +1 dB, -3 dB (10 kΩ load)
Connectors
¼” input
XLR balanced out
Two ¼” outputs for mono or stereo connection to guitar amps, headphones,and audio interfaces
USB connection for firmware updates
Source Guitars: 16 Types
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit with 128x oversampling
D/A conversion: 24-bit with 128x oversampling
Signal processing: 32-bit
Frequency characteristics: 20 – 20 kHz +1 dB, -3 dB (10 kΩ load)
Effects
Reverb effect
Controls
Piezo/magnetic input pickup select
3-band equalizer
Input and output gain/sensitivity adjustable via single volume knob (patent pending)
Anti-feedback control
Boost switch for up to 9 dB of additional gain
Built-in chromatic visual-LED tuner
Power
AC adapter DC9V, 500 mA center negative (ZOOM AD-16); Batteries: 2 AA (about 3 hrs continuous); USB: USB MIDI USB Micro-B
Power Supply
2 x AA batteries, the included Zoom AD-16 power adapter (9V DC in), or bus power via micro-USB port
