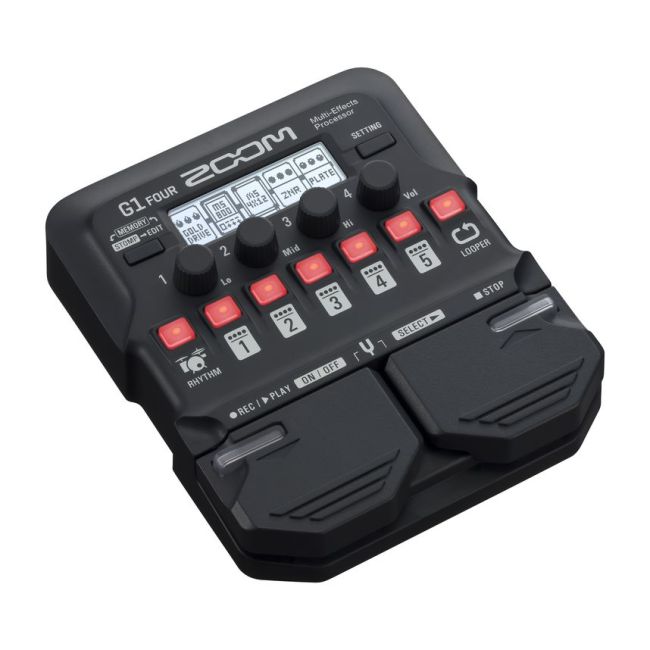

The Zoom G1 FOUR and G1X FOUR feature over 70 effects and amp models, looper and drum machine. Plus, access ZOOM Guitar Lab’s additional library of downloadable effects. Plug in and be amazed!
● G1 FOUR offers over 60 built-in effects
● 13 amp models for simulating classic rigs
● Up to 5 effects can be used simultaneously, chained together in any order
● Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
● ZOOM Guitar Lab software for creating, editing and managing effects and patches
● 68 built-in rhythm patterns which can be used in conjunction with the Looper
● 50 memory locations for storing user-created patches
● Auto Save function for automatic saving of all patch parameters
● Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
● Input jack accepts standard mono guitar cable (both active and passive instruments supported)
● Auxiliary input jack for connection of personal music players
● Output jack for connection to amp or headphones
● Runs on 4 AA batteries, with alkaline battery life of 18 hours
● USB port for firmware updates, power and connection to ZOOM Guitar Lab
INPUT: Standard mono phone jack | Rated input level: -20 dBu | Input impedance (line): 470 kΩ
AUX IN: Stereo mini jack | Rated input level: -10 dBu | Input impedance (line): 1kΩ
Outputs
OUTPUT: Standard stereo phone jack (combined line/headphone) | Maximum output level: Line +2 dBu (10 kΩ or more output impedance) | Headphones 17 mW + 17 mW (32Ω load)
Connectors
USB Connector: USB2.0 Micro-B
Display
128x32 dot matrix LCD
Noise
Noise floor (residual noise): -97 dBu
Dimensions
156 mm (D) × 130 mm (W) × 42 mm (H)
Weight
340 g (excluding batteries)
Specification
Maximum number of simultaneous effects: 5
User patches: 50
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit, 128× oversampling
D/A conversion: 24-bit, 128× oversampling
Signal processing: 32−bit
Input S/N: 120 dB
USB Guitar Lab standard: USB 1.1 Full Speed
Supported cable: USB2.0 Micro-B cable
Effects
G1 FOUR offers over 60 built-in effects | 13 amp models for simulating classic rigs | Maximum number of simultaneous effects: 5
Power
AC adapter: 9V DC 500mA center negative (ZOOM AD-16) | 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
Power Supply
AC adapter: 9V DC 500mA center negative (ZOOM AD-16) | 4 AA batteries
