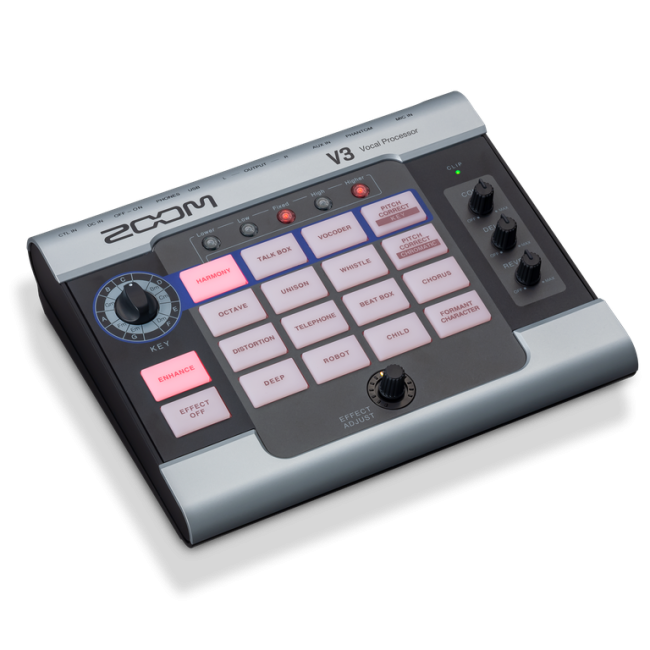

Whether you’re streaming, recording, or collaborating online, the V3 is packed with effects, harmonizing options, pitch correction and more. Your voice will sound amazing - from home, or anywhere else.
V3 offers 16 creative voice effects plus compression, reverb, delay and enhance. Add up to two voices to create 3-part harmonies across a full octave. Independent compression, reverb and delay controls. Built-in Enhancer for increased sound clarity. 48V phantom power for condenser microphones. USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz. Line outputs for connecting to PA systems or mixing consoles. Headphone output with dedicated volume control. Auxiliary input. Operates for 3.5 hours on 4 AA batteries or with Zoom AD-16 AC adapter.
MIC IN: XLR jack
Input gain: +3 – +40 dB
Maximum input level: +4 dBu
Input impedance: 3 kΩ or higher (1 kHz)
Phantom power: +48 V
AUX IN: Stereo mini jack
Rated input level: −10 dBu
Input impedance (line): 22 kΩ
Outputs
L/R OUT: Unbalanced TS jacks
Maximum output level: +6 dBu
Output impedance: 100 Ω
PHONES: Stereo mini jack
Maximum output level: 20 mW + 20 mW (into 32 Ω load)
Frequency Response
20 Hz–20 kHz (+1 dB/−3 dB) (10 kΩ load)
Connectors
MIC IN: XLR jack; AUX IN: Stereo mini jack; L/R OUT: Unbalanced TS jacks; PHONES: Stereo mini jack; Control input: FS01/FP02M input; USB Connector: Micro USB
Noise
Equivalent input noise (when phantom power off): –125 dBu or less (A-weighted, 150 Ω input, +40 dB input gain); Noise floor (residual noise): –75 dBu
Dimensions
150 mm (D) × 190 mm (W) × 50 mm (H)
Weight
0.59 kg (excluding batteries)
Specification
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
USB Audio interface operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit
Effects
Effects: 16 types
Concurrent effects: 5
Power
AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16); 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
Power Supply
AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16); 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries); Power can also be supplied through the USB port.
