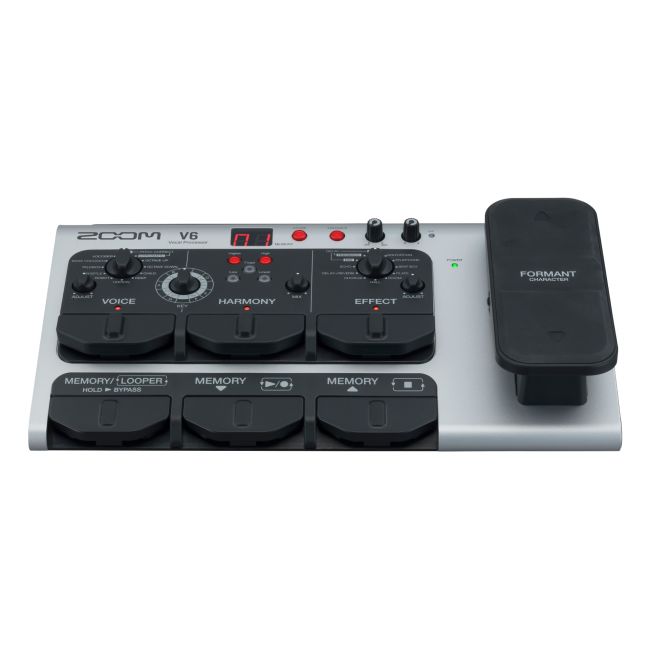

Packed with professional vocal effects, built-in looper, and our new Formant Pedal, no matter what style you sing the V6 will take your music to the next level.
V6 offers over 10 studio-grade effects
Simultaneously use up to three vocal processors from the Voice, Harmony and Effect sections
Formant Shift pedal for adjusting your vocal character in real time
Looper for recording up to 3:30.
40 preset patches created by professional vocalists and audio engineers
100 memory locations for storing user-created patches
Built-in compressor for optimizing input signal levels
Built-in Enhancer for optimizing input signal frequencies via equalization and de-essing
USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz
USB port for firmware updates, power and audio recording
Line output for connecting to external mixing consoles
Headphone output with dedicated volume control
Runs for 3.5 hours on four AA batteries
Included AC adapter
Optional expression pedal offers advanced control over effects parameters
MIC IN: XLR jack
Input gain: +3 – +40 dB
Maximum input level: +4 dBu
Input impedance: 3 kΩ or higher (1 kHz)
Phantom power: +48 V
Control input: FP02 input
Outputs
OUTPUT: XLR jack
Maximum output level: +8 dBu
Output impedance: 50 Ω (HOT-GND, COLD-GND, 1 kHz); 100 Ω (HOT-COLD , 1 kHz)
GROUND LIFT (switchable)
PHONES: Stereo mini jack
Maximum output level: 20 mW + 20 mW (into 32 Ω load)
Frequency Response
20 Hz–20 kHz (+1 dB/−3 dB) (200 kΩ load)
Connectors
USB Connector: Micro USB
Display
2-digit 7-segment LED
Noise
Equivalent input noise (when phantom power off): –125 dBu or less (A-weighted, 150 Ω input, +40 dBu input gain); Noise floor (residual noise): –75 dBu
Power Requirements
9 V DC 500 mA, center negative
Dimensions
181 mm (D) × 320 mm (W) × 77 mm (H)
Weight
1.56 kg (excluding batteries)
Specification
Number of patch memories: 100
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
USB Audio interface operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit
Voice
12 types
Effects
Effect Section: 10 Types
HARMONY section: 5 Types
Power Supply
AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16); 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
